eX1 Guide
The eX1 External Battery is the best in its class in terms of size, weight and capacity, and adds 171 Wh to extend your ride. The eX1 works as a direct power supply. It enables for the extension of the ride up to 55 km or 60 km, depending on the system.
Please note that the External Battery is compatible with X Series Systems, but not with the X35 model.
There are two versions of the connection cable available, enabling different installation positions for each cable.

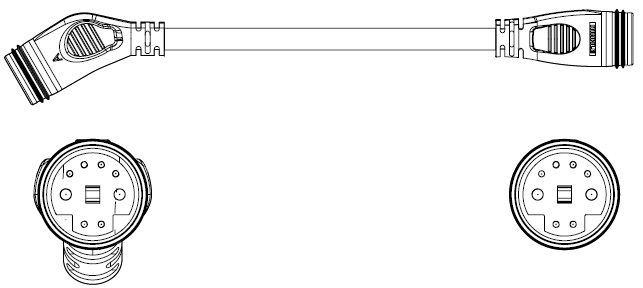

AD RA2 30º Connector

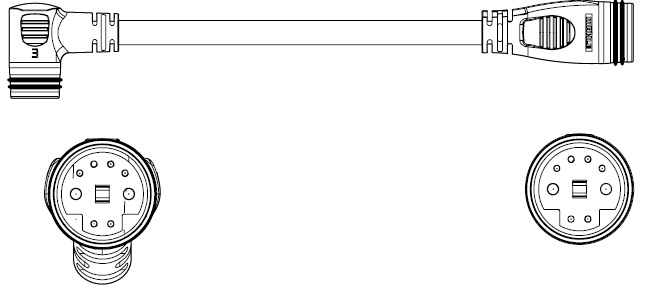

AD RA2 90º Connector
- Autonomy
60 km additional range in the best conditions. - Weight/capacity ratio
At 171 Wh and only 1100 grams, it has the best
weight-to-capacity ratio in its class. - Waterproofing
IP67 level.
- Freedom
Get rid of unnecessary weight. Add extra range
to your bike only when you need it. - Locking system
Quick locking system. - Charging time
Fast charging: 80% in under 2 hours.

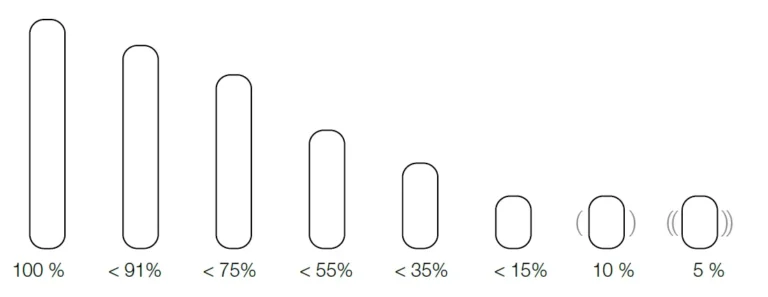

Battery Level
LED states
| LED colour | Operation mode |
|---|---|
| White | No assistance |
| Green | Assist level 1 |
| Orange | Assist level 2 |
| Purple | Assist level 3 |
| Red | System error |
eX1 Battery
- Capacity: 171 Wh.
- Rated voltage: 36 V.
- Light indicator: assistance mode and battery charge indicator.
- Physical button: system on/off. Change of assistance mode.
- IP67 protection.
- Weight: 1100 g.
