Battery Charging Process: MAHLE X Series Guide
Charging is a key part of the eBike experience, but it should never feel complex.
Whether you’re commuting daily, extending your weekend rides or preparing for longer trips, understanding how to charge your system properly ensures reliability, efficiency and long term performance.
The MAHLE X Series ecosystem offers two complementary charging solutions: the X Active Charger, designed for seamless day to day use with all X Series batteries, and the Energy Hub, a flexible platform built around the eX1 external battery with added versatility beyond the bike.
This guide explains how each solution works, when to use them and how to charge safely and efficiently.
1. X Active Charger Overview

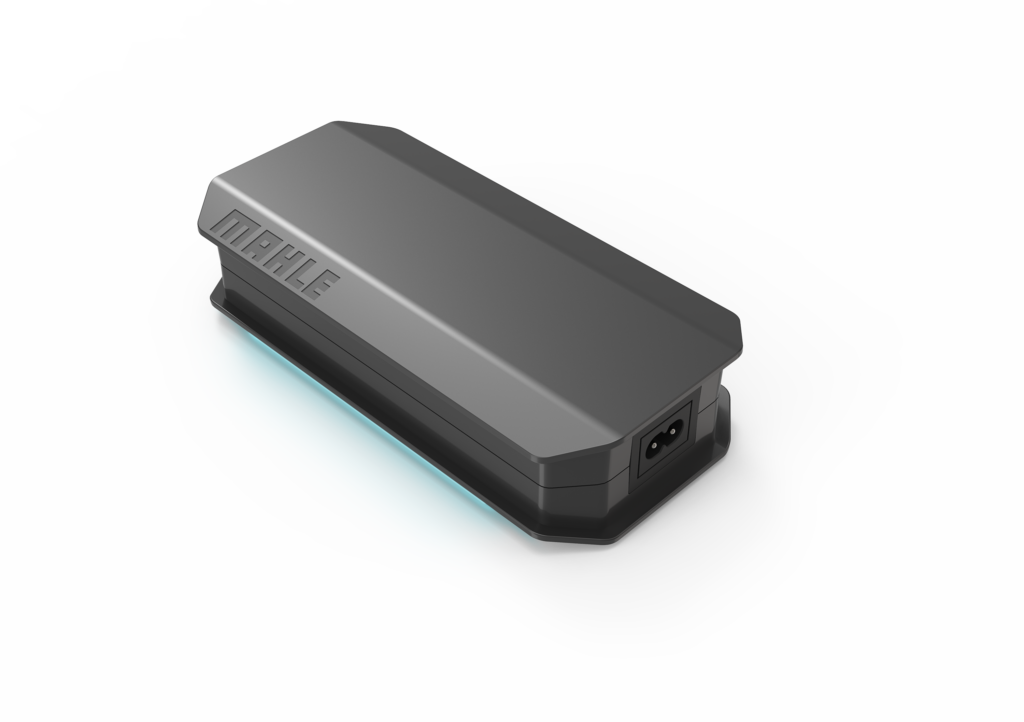

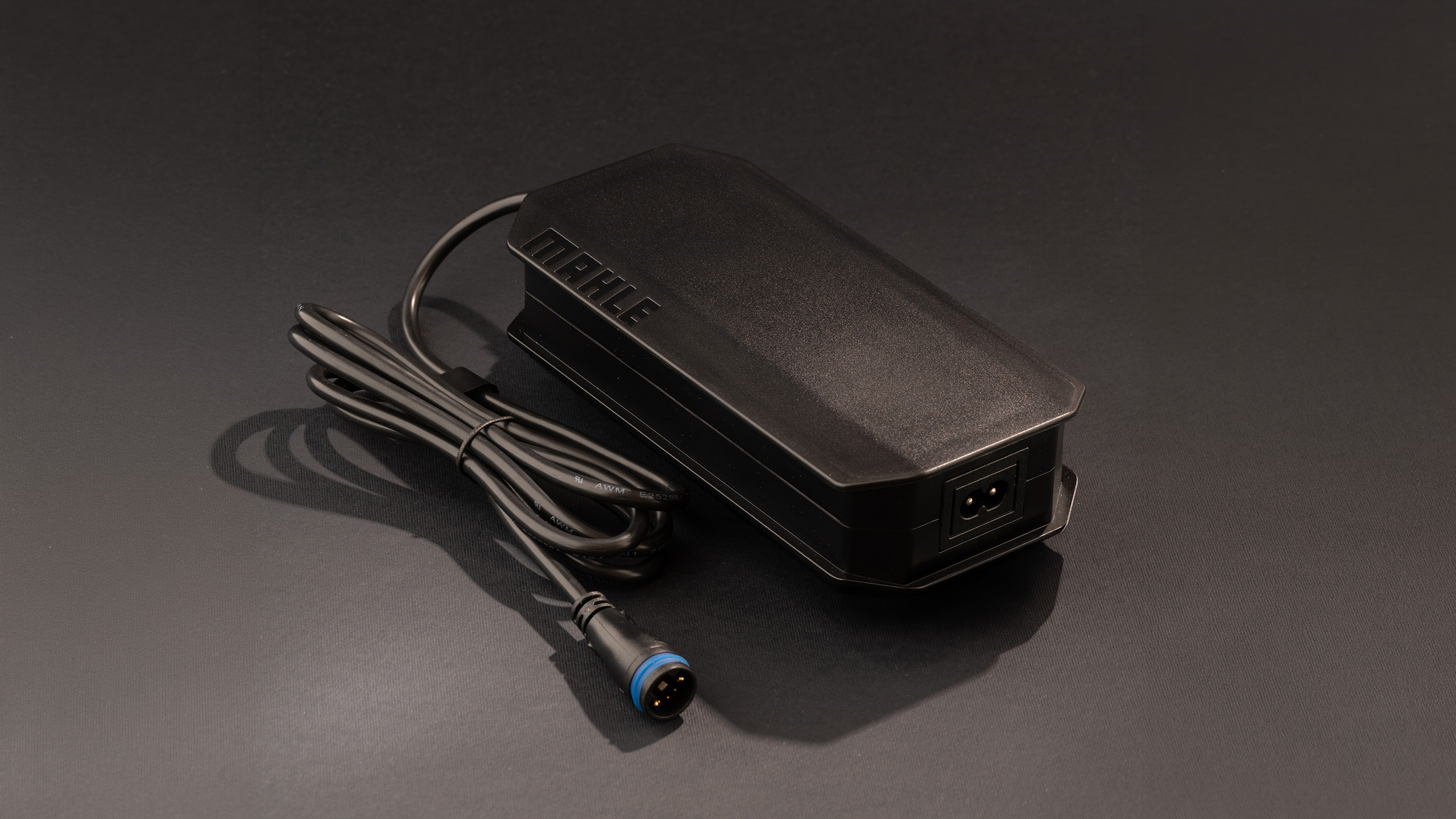

The MAHLE X Active Charger is the core charging solution for all MAHLE X Series internal and external batteries, offering fast charging up to 4A.
Using the CAN‑BUS communication port, the charger continuously identifies the battery type and its charge level, automatically adjusting the charging current to ensure both efficiency and battery protection.
Its key features include: Fast charging (up to 4A), Automatic detection of battery type and status, optimised charging current to support battery health, LED indicator showing charging mode and errors and optional wall bracket for easy mounting.
2. Charging Process Using the X Active Charger
Use this procedure for both internal and external batteries.
Step by step
1. Connect the charger to the main socket
- LED status: steady white
This means the charger is powered and ready.
2. Connect the charger to the bike’s charging port
- LED on charger + Control Unit: cyan
- Breathing effect: blinking pattern changes as the battery charges.

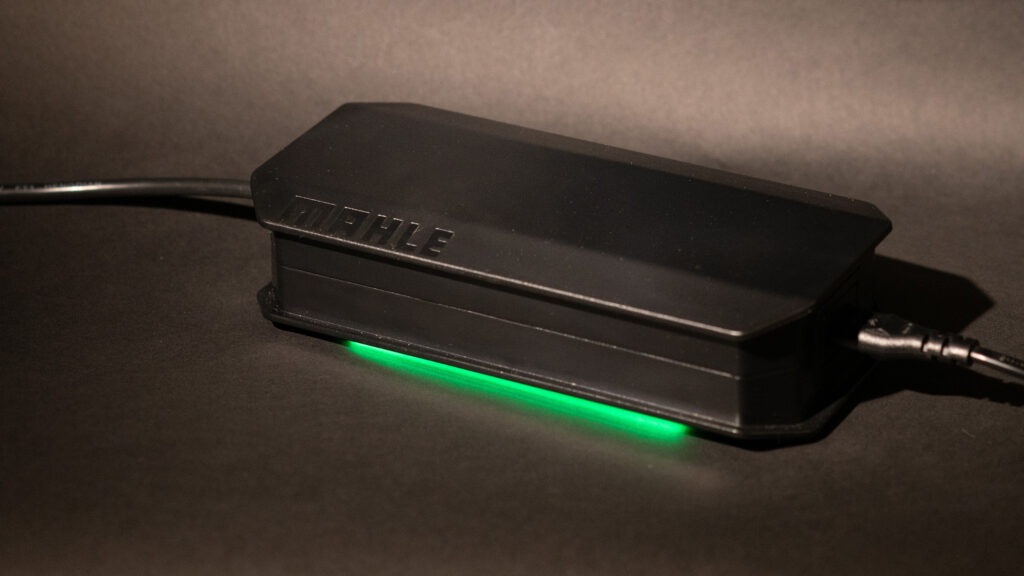

3. Charging complete
- Control Unit LED: steady green
Charging has finished. Disconnect the charger from the power supply first, then unplug it from the bike.
4. Error indication
- Charger LED flashing red This indicates a critical charging error.
Disconnect the system, check connections and contact a dealer if needed.

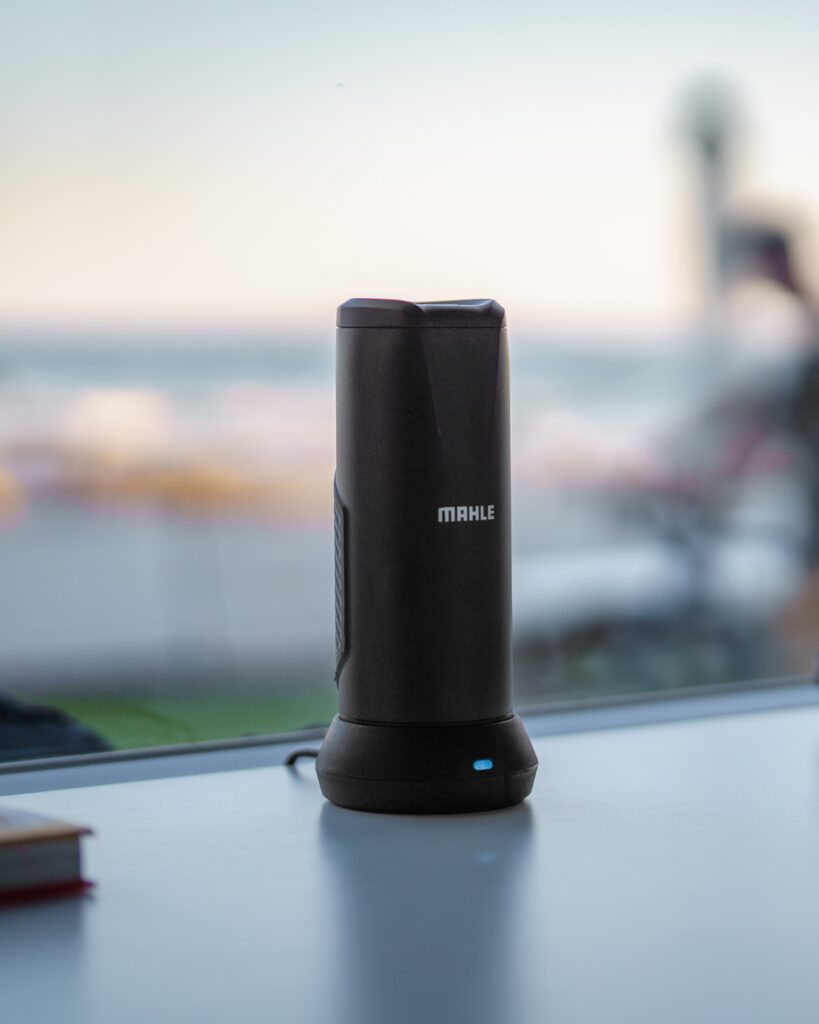

3. Energy Hub Overview (eX1 External Battery)
The Energy Hub is a dedicated solution designed for the eX1 external battery, expanding its functionality beyond standard charging.
Together, the Energy Hub and eX1 create a bidirectional charging system, allowing you not only to charge the battery but also to use it as a portable energy source.
The system uses a USB‑C connection and, for optimal performance, it is recommended to use a power supply of at least 60 W. To ensure stable and reliable operation, it is also important to use either the cables provided by MAHLE or high quality alternatives, keeping the cable length under two metres.

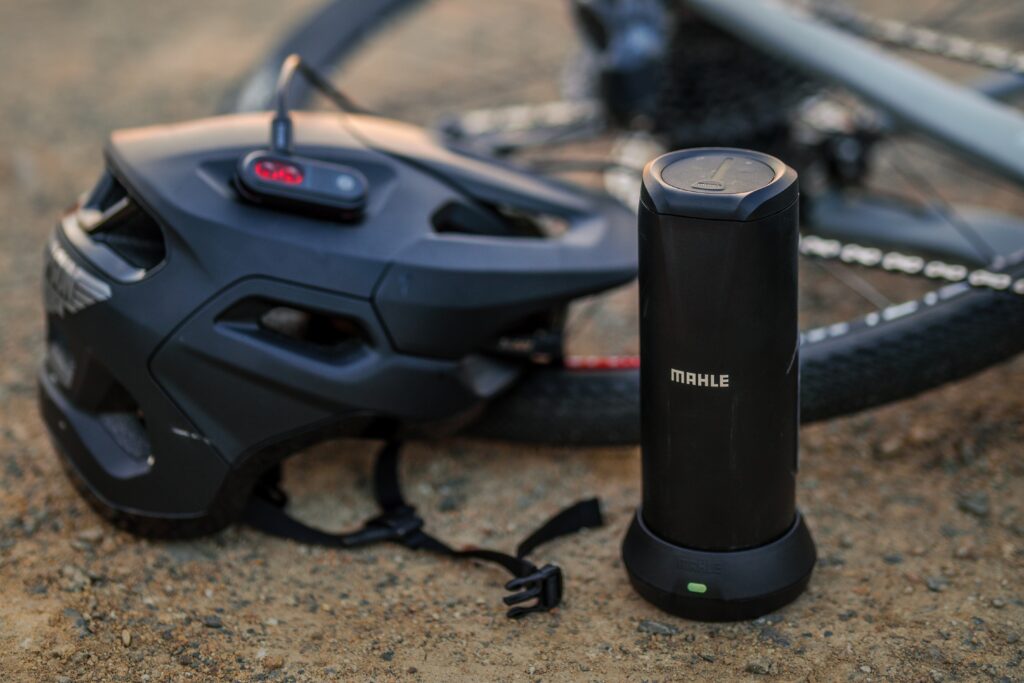

When to use it? The Energy Hub is particularly useful when: travelling or riding long distances, charging the battery off the bike and powering external devices (phone, GPS, lights)
4. Charging the eX1 Using the Energy Hub
1. Connect a power supply to the Energy Hub
- LED: steady white
- The Hub is powered and ready.
2. Connect the eX1 battery
- LED bar: lights blue
- Charging begins.
3. Charging complete
- LEDs: solid green Disconnect the power supply first, then remove the eX1 battery.
Error indication
- Energy Hub LED flashing red A critical error has occurred. Check cables and power source.
5. Best Practices for Safe and Efficient Charging
Proper charging is not only about speed it also protects connectors, electronics and battery lifespan over time.
To ensure safe and consistent performance, the system should always be charged in a dry, well ventilated indoor environment, avoiding exposure to extreme temperatures, especially immediately after riding in very hot or cold conditions.
Before starting any charging operation, it is important to check that the connectors are clean and completely dry, as contamination or moisture can affect both performance and durability. Care should also be taken to avoid unnecessary stress or repeated manipulation of the connectors, as this can lead to wear over time.
For optimal reliability, only MAHLE approved or high quality chargers and cables should be used, and the charger should not remain connected once the battery has reached full charge.
Finally, when the charging port is not in use, it should always be properly protected to prevent damage or the ingress of dirt and moisture.
6. FAQs
1. Is the X Active Charger compatible with all X Series batteries?
Yes, it works with every MAHLE X Series internal and external battery.
2. What does the breathing cyan light mean?
It indicates active charging. The frequency increases as the battery approaches full capacity.
3. Why must I disconnect the charger from the socket first?
To reduce stress on connectors and ensure a safe disconnection process.
4. What should I do if I see a flashing red light on the charger or Energy Hub?
A critical error has occurred. Disconnect everything, check connectors and cables, and contact a dealer if the issue persists.
5. Can I use any USB‑C charger with the Energy Hub?
Use chargers ≥ 60 W and high quality cables under 2 metres. Lower quality accessories may affect charging performance or cause errors.
6. Can the Energy Hub charge devices other than the eX1 battery?
Yes. It can also supply power to compatible devices through USB‑C, turning the battery into a portable power source.
7. Does fast charging affect battery life?
No. The X Active Charger optimises charging current via CAN‑BUS to protect battery health.
8. Can I charge the battery outdoors?
Charging should always be done in a dry, indoor environment to protect connectors and electronics.
Conclusion
Charging your MAHLE X Series System is designed to be simple, flexible and reliable. Whether using the X Active Charger for everyday convenience or the Energy Hub for added versatility, following the correct process and basic best practices ensures consistent performance and long term durability.
By understanding how each solution fits different riding scenarios, you can make the most of your system both on and off the bike.
